US OPTICS TS-20X RIFLE SCOPE 2.5-20X50MM W/ 34MM TUBE & MDMOA RETICLE
Roll over image to zoom in
$1,420.25
CALL OR EMAIL FOR OUR DAILY SALES AND PROMOS ON THIS ITEM 15% TO 25% OFF
US Optics, TS Series Rifle Scope, 2.5-20X50mm, 34mm Main Tube, First Focal Plane, 0.25 MOA Adjustments, Black Finish, MDMOA Reticle.
The USO TS-20X riflescope is built to meet the rigorous demands of long-range hunters and precision competitors. Whether you are gearing up your production class PRS Rifle or custom building your precision hunting rig, the TS-20X will help you maximize your rifle’s performance capabilities. It’s wide range magnification and parallax adjustment allows you to dial down to 2.5 power for up close shots, and dial up to 20 power when you need to reach out past 1,000 yds. It’s top tier optical system, rugged 34mm aluminum body, zero stop, and ample amounts of elevation and windage travel will ensure that you are more than ready for your next endeavor.
FEATURES:
- Elevation Knob: 1/10 mil (for MIL Reticles) / 1/4 MOA (for MOA Reticles)
- Elevation Travel: 32 mils total travel;
- 24.3 mils of travel on 30 MOA down
- Windage Knob: 1/10 mil (for MIL Reticles) / 1/4 MOA (for MOA Reticles)
- Windage Adjustment Range: 30 mils of total 15L/15R

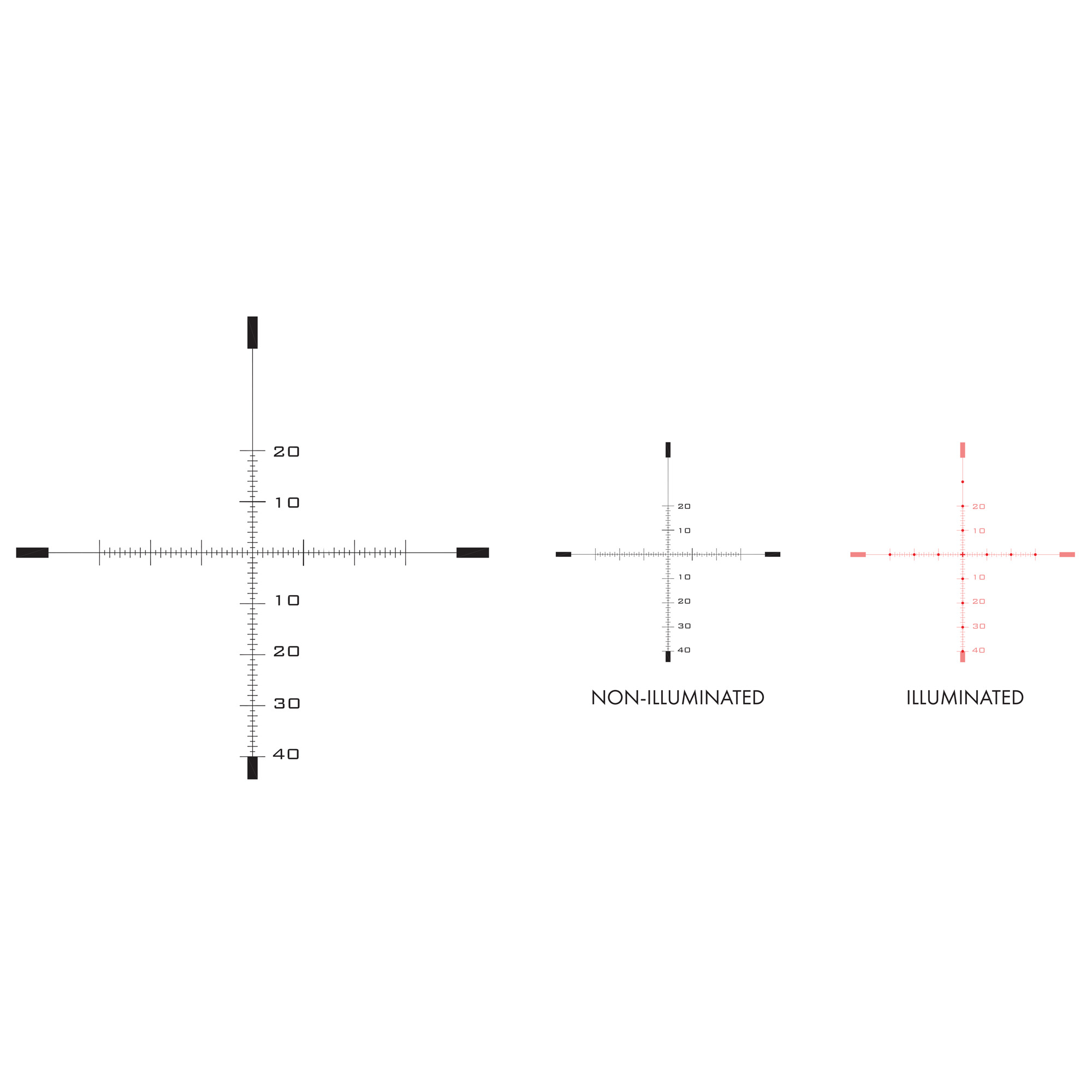

- Reticle: First Focal Plane MDMOA
- 20X Field of View @ 100 meters = 2.2 meters
- 12X Field of View @ 100 meters = 3.8 meters
- 3X Field of View @ 100 meters = 11.3 meters
- 2.5X Field of View @ 100 meters = 14 meters
SPECIFICATIONS
| Objective Lens Diameter: | 50 mm |
| Magnification: | 2.5 – 20 x |
| Tube Diameter: | 34 mm |
| Reticle Focal Plane: | First Focal Plane (FFP) |
| Exit Pupil: | 2.5 mm |
| Battery Type: | CR2032 |
| Battery Quantity: | 1 |
| Field of View, Linear: | 7.2 – 45.9 ft at 100 yds |
| Field of View, Angle: | 2.2 – 14 degrees |
| Eye Relief: | 3 in |
| Diopter Adjustment Range: | -2.5 – 3 dpt |
| Color: | Black |
| Weight: | 1.79 lb |
| Fabric/Material: | Aluminum |
| Length: | 14.64 in |
| Width: | 3.883 in |
| Height: | 2.43 in |
| Illumination Type: | LED |
| Illumination Color: | Red |
| Brightness Settings: | 14 |
| Adjustment Range: | 2.5 – 20 in |
| Parallax: | 10 yds to infinity |
| Lens Material: | Glass |
| Optical Coating: | Fully Multi-Coated |
| Battery Life: | 500 hours |
| Weather Resistance: | Rain Resistant |
| Water Resistant Mark: | 66 ft |
| Shockproof: | Yes |
| Fogproof: | Yes |
| Included Accessories: | Lens Caps |
| Magnification Type: | Variable |
Specifications
| UPC | 811069021611 | Manufacturer | US Optics |
|---|---|---|---|
| Manufacturer Part # | TS-20X MDMOA | Model | TS Series |
| Type | Rifle Scope | Power | 2.5-20X |
| Objective | 50 | Color | Black |
| Size | 34mm | Description | Front Focal Plane |
| Subcategory | Scopes & Magnified Optics |
