MARK 4 ER/T 4.5-14X50mm (30mm)TS-60X2 MOA

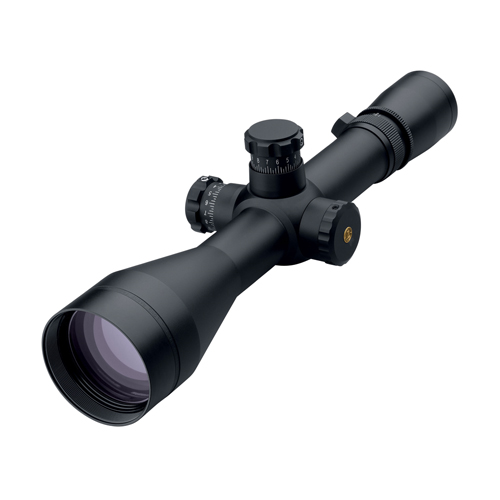

Leupold 4.5-14×50 Mark 4 ER/T M1 Side Focus Riflescope

Decorated with a 24k gold-plated ring and a medallion, the matte black 4.5-14×50 Mark 4 ER/T M1 Side Focus Riflescope from Leupold is designed for distance shooting, features a TS-60X2 reticle, and a side focus dial parallax adjustment. While the proprietary Xtended Twilight Lens System offers index-matched multiple anti-glare coatings that maximize light transmission, the large 50mm objective helps to collect more light in low-light situations and provides brighter images. In order to improve contrast and reduce stray light, the environmentally friendly lead-free optical elements have their edges blackened. The DiamondCoat 2 protective coatings on external elements protect optics from scratches and other mechanical damage. To help you compensate for wind drift and ballistic bullet drop, the scope offers 100 MOA windage and elevation adjustment ranges with a 1/4 MOA impact point correction.
Located in the first focal plane, the TS-60X2 reticle features a system of fine precision aiming points and allows you to compensate for bullet drop and wind drift without turning dials. The reticle provides a total bullet dropt compensation range of 60 MOA and can also be used to range your target.
The 6061-T6 aluminum housing is lightweight and durable, waterproof and fogproof, and features a twin bias spring erector system that increases holding force by 30%. To prevent fogging-up of optics when you are moving through environments with changing temperatures, the housing is filled with a mixture of krypton and argon gases. Moreover, this riflescope is equipped with a Custom Dial System (CDS) which allows quickly switching elevation to your sight-in ranges. Also included with the riflescope are flip-up protective lens caps.

Features:
– TS-60X2 Reticle/First Focal Plane
– 30mm Main Tube Diameter
– 100 MOA Windage/Elevation/ 1/4 MOA IPC
– CDS-Custom Dial System
– 6061-T6 Aluminum Housing
– Waterproof and Fogproof
– Capped Dial Turrets
– Xtended Twilight/Multiple Coatings
– DiamondCoat 2 Protective Lens Coating
– Side Focus Parallax Dial

Optical Performance:
– Actual magnification: 4.9 – 14.6x
– Objective lens: 50mm
– Main tube diameter: 30mm
– Eye relief: 4.5 – 3.6″
– Xtended Twilight Lens System matches coatings-to-glass indices to improve transmission in twilight and provides greater detail
– Blackened Lens Edges absorb stray light and improve contrast
– Ballistic Aiming System (BAS) helps to customize zoom factor for your cartridge and save the setting
– Lead-free glass optics are environmentally friendly
– DiamondCoat 2 is an extra layer of coating that defends against external damage and adds to image quality

Reticle:
– TS-60X2 60 MOA reticle is located in the first focal plane
– 60 MOA range for bullet drop compensation
– Can be used to range your target

Specifications:
– Magnification:4.9-14.6x
– Objective Lens Diameter:50 mm
– Main-Tube Diameter:1.18″ (30 mm)
– Reticle:TS-60X2 reticle, first focal plane
– Reticle:60 MOA BDC range
– Field of View Angular: 3.6-1.4°
– Linear: 19 – 7.6′ @ 100 yd (6.3 – 2.5 m @ 100 m)
– Parallax Correction:75 yd (68.6 m) to infinity
– Side focus adjustment
– Eye Relief:4.5 – 3.6″ (114 – 91 mm)
– Exit Pupil Diameter:Not provided by manufacturer
– Impact Point Correction:1/4 MOA
– Maximum Windage/Elevation Adjustment:100 MOA
– Weatherproofing:Waterproof and fogproof
– Finish:Matte black
– Length:12.5″ (317.5 mm)
– Weight:22 oz (624 g)

– TS-60X2 Reticle/First Focal Plane
– 30mm Main Tube Diameter
– 100 MOA Windage/Elevation/ 1/4 MOA IPC
– CDS-Custom Dial System
– 6061-T6 Aluminum Housing
– Waterproof and Fogproof
– Capped Dial Turrets
– Xtended Twilight/Multiple Coatings
– DiamondCoat 2 Protective Lens Coating
– Side Focus Parallax Dial

Optical Performance:
– Actual magnification: 4.9 – 14.6x
– Objective lens: 50mm
– Main tube diameter: 30mm
– Eye relief: 4.5 – 3.6″
– Xtended Twilight Lens System matches coatings-to-glass indices to improve transmission in twilight and provides greater detail
– Blackened Lens Edges absorb stray light and improve contrast
– Ballistic Aiming System (BAS) helps to customize zoom factor for your cartridge and save the setting
– Lead-free glass optics are environmentally friendly
– DiamondCoat 2 is an extra layer of coating that defends against external damage and adds to image quality

Reticle:
– TS-60X2 60 MOA reticle is located in the first focal plane
– 60 MOA range for bullet drop compensation
– Can be used to range your target

Specifications:
– Magnification:4.9-14.6x
– Objective Lens Diameter:50 mm
– Main-Tube Diameter:1.18″ (30 mm)
– Reticle:TS-60X2 reticle, first focal plane
– Reticle:60 MOA BDC range
– Field of View Angular: 3.6-1.4°
– Linear: 19 – 7.6′ @ 100 yd (6.3 – 2.5 m @ 100 m)
– Parallax Correction:75 yd (68.6 m) to infinity
– Side focus adjustment
– Eye Relief:4.5 – 3.6″ (114 – 91 mm)
– Exit Pupil Diameter:Not provided by manufacturer
– Impact Point Correction:1/4 MOA
– Maximum Windage/Elevation Adjustment:100 MOA
– Weatherproofing:Waterproof and fogproof
– Finish:Matte black
– Length:12.5″ (317.5 mm)
– Weight:22 oz (624 g)
